**MUST CALL IN TO ORDER THIS KIT (IT'S NOT ACTUALLY OUT OF STOCK) TO MAKE SURE YOU ARE SIZED PROPERLY 979-472-9360**
The Power Trunk Line Plug and Play Wiring Kit is composed of our Building Block Power Wire Harness components. This kit allows you to easily plug multiple Swamp Eye® HD, Swamp Eye® Gen 2.X Light Bars, or Swamp Eye® Silent Series Lights together on one main trunk line to achieve a clean wiring setup for running these lights on battery or on one large upsized power converter.
Power Trunk Line Plug and Play Wiring Kit consists of the following components:
- Tee Connector for Power Cord Trunk Line (Support Up to 30 Amps)
- Power Cord Trunk Line Lead (Supports Up to 30 Amps)
- Transition Lead - Trunk Line Plug to Individual Light Plug (Supports Up to 30 Amps)
- Power Cord Lead with Trunk Line Battery Terminals (Support Up to 30 Amps)
This kit can support a maximum of 30 amps. Due to this, we recommend running your Swamp Eye® Lights on 24V DC (rather than 12V DC) batteries to reduce amp draw as much as possible.
At 24V DC, the maximum number of lights you can put on one trunk line is as follows (if you have more lights, you will have to have more trunk lines): 4x Swamp Eye® HDs, 6x Swamp Eye® Gen 2.X Light Bars, or 10x Swamp Eye® Silent Series Lights.
Please see below for a detailed description of each kit for creating a power wire trunk line.

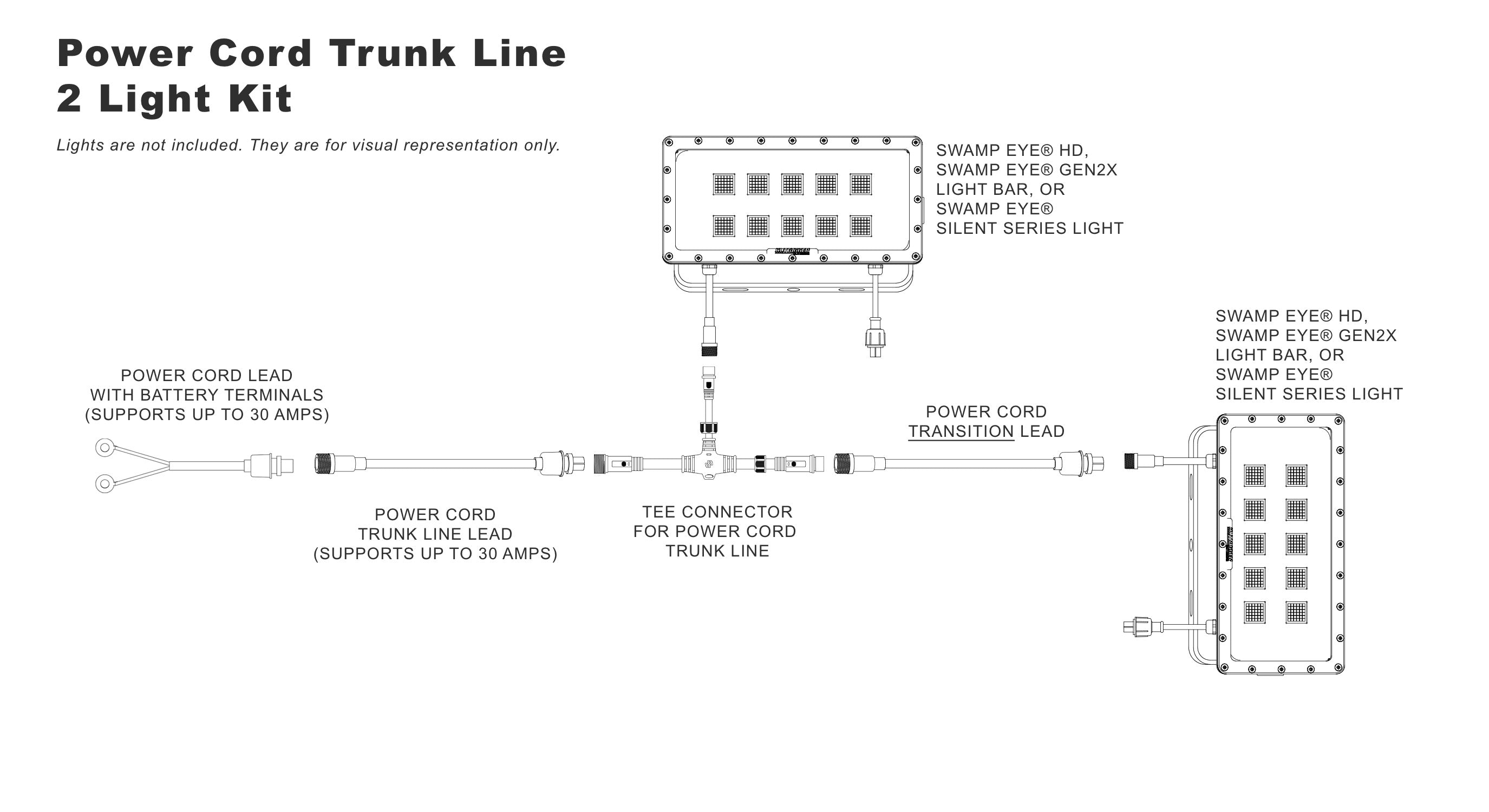

2x Light Kit - Wiring for Power Trunk Line
This kit consists of the following:
1x Tee Connector for Power Cord Trunk Line (Support Up to 30 Amps)
1x Power Cord Trunk Line Lead (Supports Up to 30 Amps)
1x Transition Lead - Trunk Line Plug to Individual Light Plug (Supports Up to 30 Amps)
1x Power Cord Lead with Trunk Line Battery Terminals (Support Up to 30 Amps)
This kit is compatible with and can support the following lights: 2x Swamp Eye® HD Bowfishing Lights, 2x Swamp Eye® Gen 2.X Light Bars, or 2x Swamp Eye® Silent Series Lights.

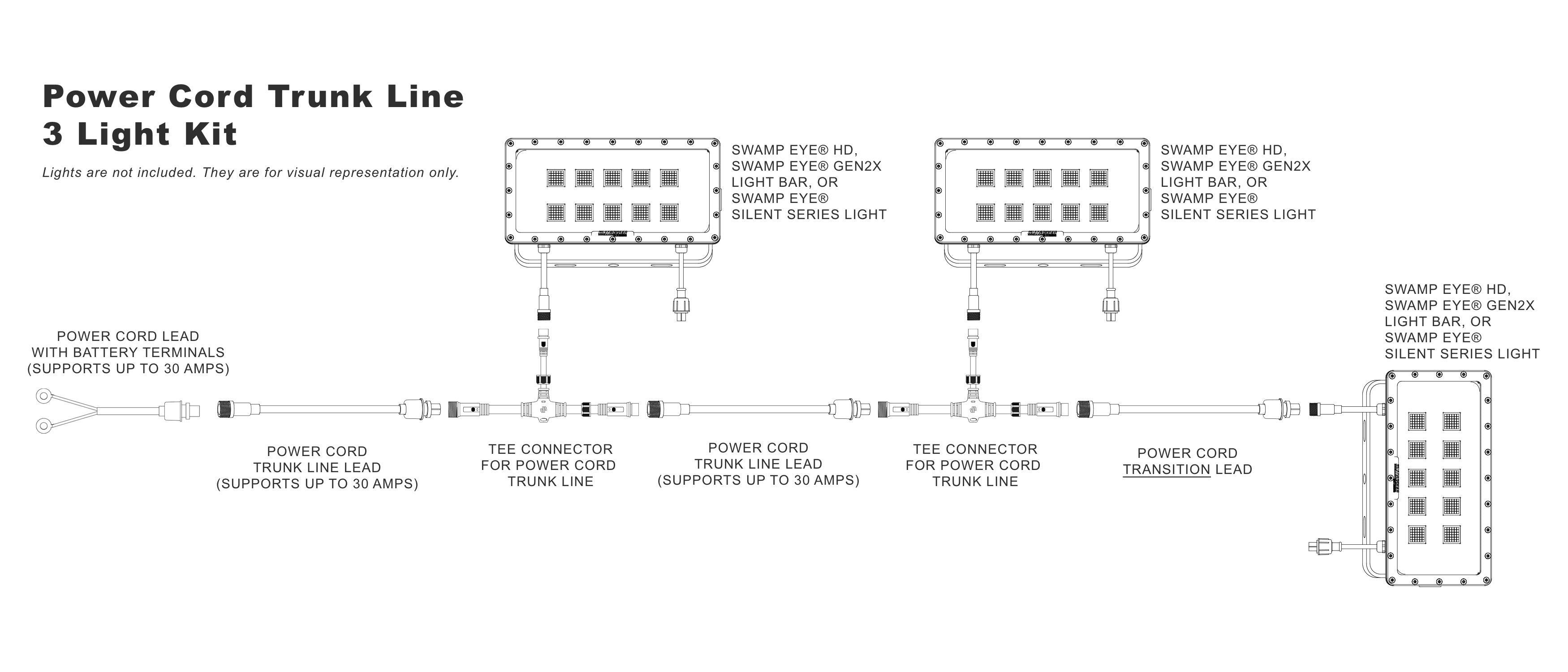

3x Light Kit - Wiring for Power Trunk Line
This kit consists of the following:
2x Tee Connector for Power Cord Trunk Line (Support Up to 30 Amps)
2x Power Cord Trunk Line Lead (Supports Up to 30 Amps)
1x Transition Lead - Trunk Line Plug to Individual Light Plug (Supports Up to 30 Amps)
1x Power Cord Lead with Trunk Line Battery Terminals (Support Up to 30 Amps)
This kit is compatible with and can support the following lights: 3x Swamp Eye® HD Bowfishing Lights, 3x Swamp Eye® Gen 2.X Light Bars, or 3x Swamp Eye® Silent Series Lights.

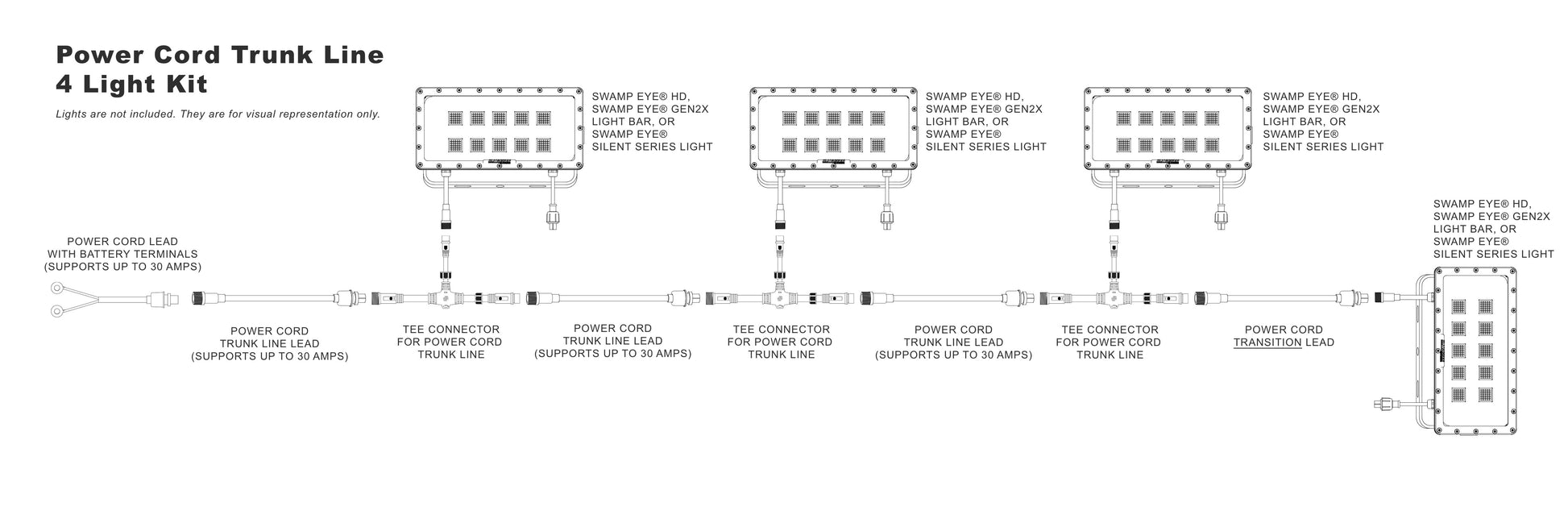

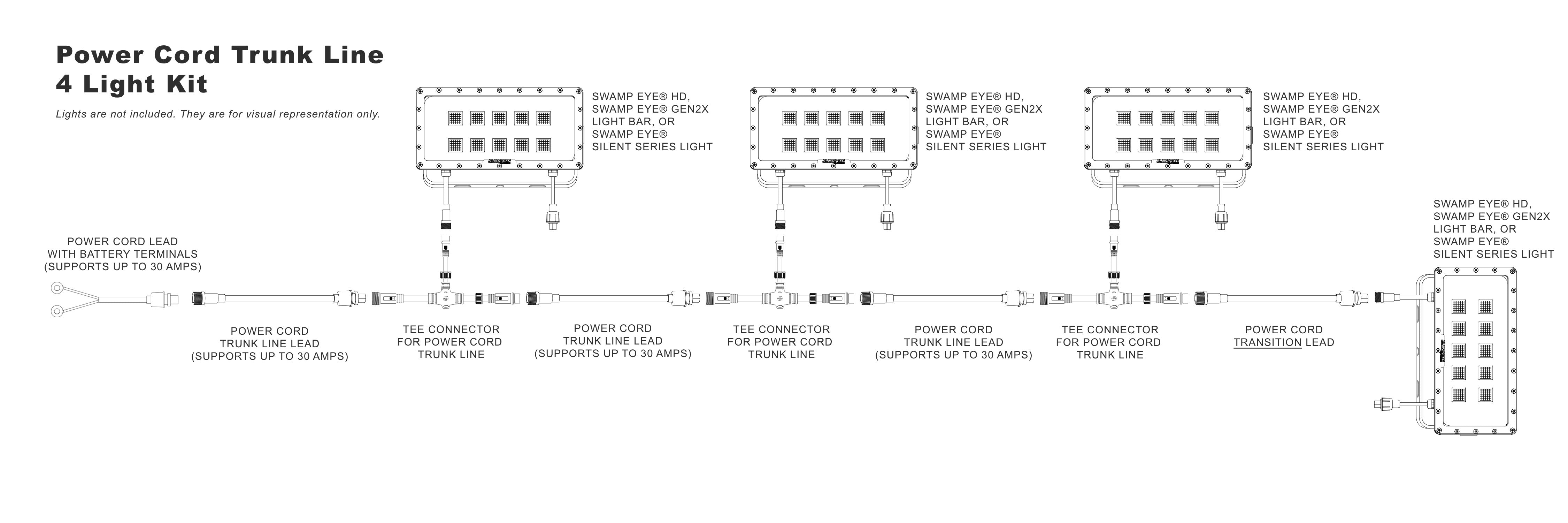

4x Light Kit - Wiring for Power Trunk Line
This kit consists of the following:
3x Tee Connector for Power Cord Trunk Line (Support Up to 30 Amps)
3x Power Cord Trunk Line Lead (Supports Up to 30 Amps)
1x Transition Lead - Trunk Line Plug to Individual Light Plug (Supports Up to 30 Amps)
1x Power Cord Lead with Trunk Line Battery Terminals (Support Up to 30 Amps)
This kit is compatible with and can support the following lights: 4x Swamp Eye® HD Bowfishing Lights, 4x Swamp Eye® Gen 2.X Light Bars, or 4x Swamp Eye® Silent Series Lights.

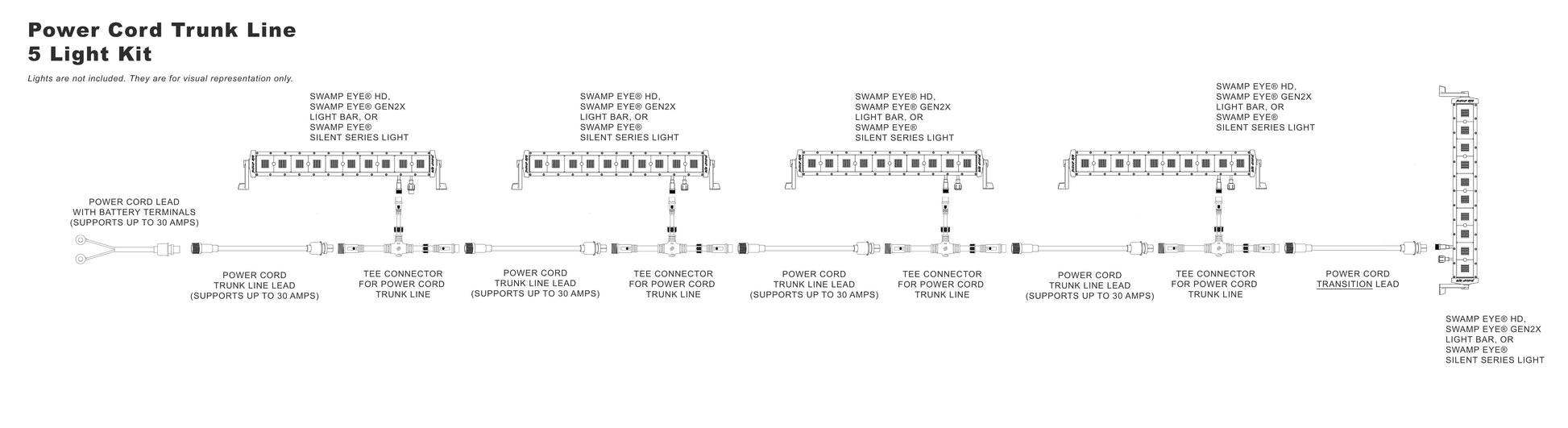

5x Light Kit - Wiring for Power Trunk Line
This kit consists of the following:
4x Tee Connector for Power Cord Trunk Line (Support Up to 30 Amps)
4x Power Cord Trunk Line Lead (Supports Up to 30 Amps)
1x Transition Lead - Trunk Line Plug to Individual Light Plug (Supports Up to 30 Amps)
1x Power Cord Lead with Trunk Line Battery Terminals (Support Up to 30 Amps)
This kit is compatible with and can support the following lights: 4x Swamp Eye® HD Bowfishing Lights (the 5th light would have to be on a separate trunk line - your are better off purchasing the 4x light wiring kit), 5x Swamp Eye® Gen 2.X Light Bars, or 5x Swamp Eye® Silent Series Lights.

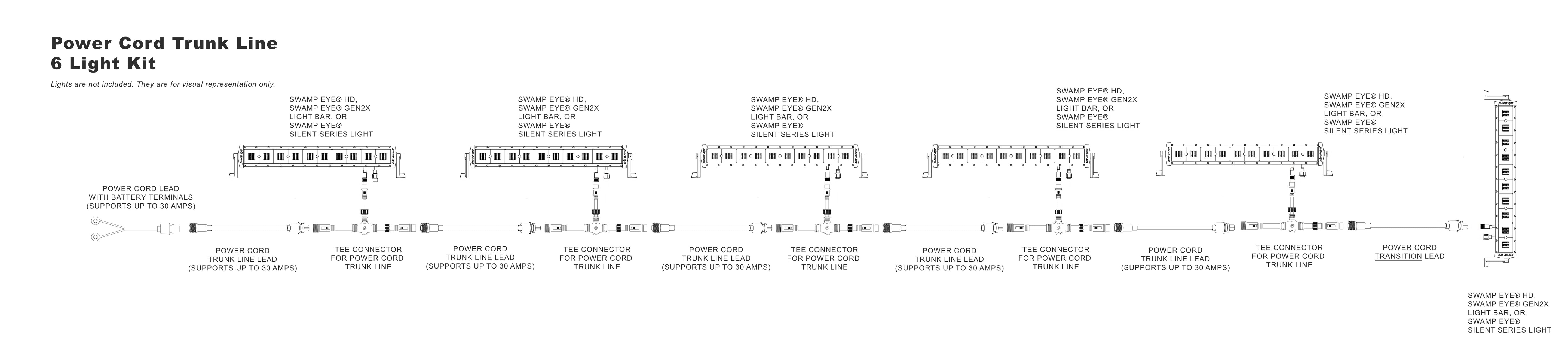

6x Light Kit - Wiring for Power Trunk Line
This kit consists of the following:
5x Tee Connector for Power Cord Trunk Line (Support Up to 30 Amps)
5x Power Cord Trunk Line Lead (Supports Up to 30 Amps)
1x Transition Lead - Trunk Line Plug to Individual Light Plug (Supports Up to 30 Amps)
1x Power Cord Lead with Trunk Line Battery Terminals (Support Up to 30 Amps)
This kit is compatible with and can support the following lights: 4x Swamp Eye® HD Bowfishing Lights (the remaining 2 lights would have to be on a separate trunk line, you are better off purchasing the 4x light wiring kit and the 2x light wiring kit), 6x Swamp Eye® Gen 2.X Light Bars, or 6x Swamp Eye® Silent Series Lights.

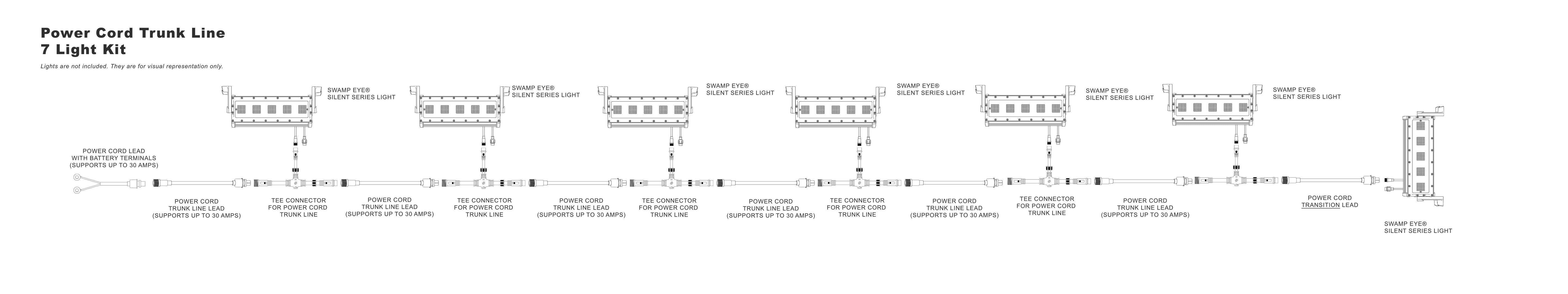

7x Light Kit - Wiring for Power Trunk Line
This kit consists of the following:
6x Tee Connector for Power Cord Trunk Line (Support Up to 30 Amps)
6x Power Cord Trunk Line Lead (Supports Up to 30 Amps)
1x Transition Lead - Trunk Line Plug to Individual Light Plug (Supports Up to 30 Amps)
1x Power Cord Lead with Trunk Line Battery Terminals (Support Up to 30 Amps)
This kit is compatible with and can support the following lights: 4x Swamp Eye® HD Bowfishing Lights (the remaining 3 lights would have to be on a separate trunk line, you are better off purchasing the 4x light wiring kit and the 3x light wiring kit), 6x Swamp Eye® Gen 2.X Light Bars (the 7th light bar would have to be on a separate trunk line, you are better off purchasing the 6x light wiring kit), or 7x Swamp Eye® Silent Series Lights.

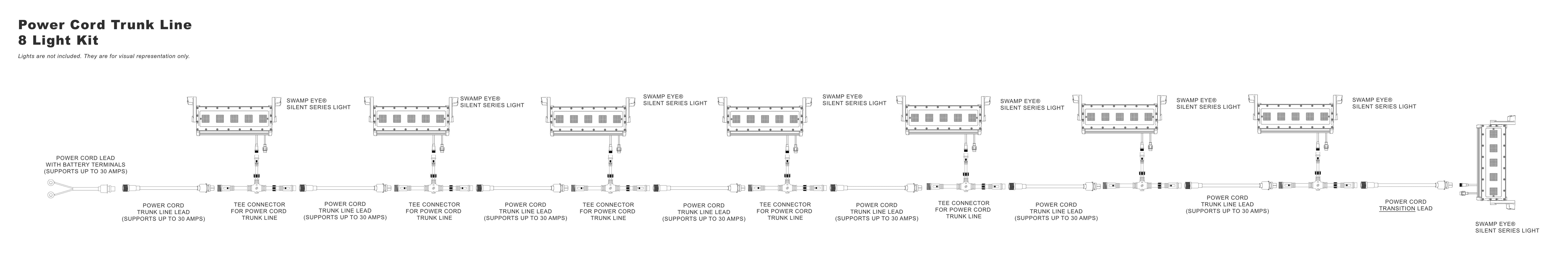

8x Light Kit - Wiring for Power Trunk Line
This kit consists of the following:
7x Tee Connector for Power Cord Trunk Line (Support Up to 30 Amps)
7x Power Cord Trunk Line Lead (Supports Up to 30 Amps)
1x Transition Lead - Trunk Line Plug to Individual Light Plug (Supports Up to 30 Amps)
1x Power Cord Lead with Trunk Line Battery Terminals (Support Up to 30 Amps)
This kit is compatible with and can support the following lights: 4x Swamp Eye® HD Bowfishing Lights (the remaining 4 lights would have to be on a separate trunk line, you are better off purchasing 2 - 4x light wiring kits), 6x Swamp Eye® Gen 2.X Light Bars (the remaining two light bars would have to be on a separate trunk line, you are better off purchasing the 6x light wiring kit and the 2x light wiring kit), or 8x Swamp Eye® Silent Series Lights.

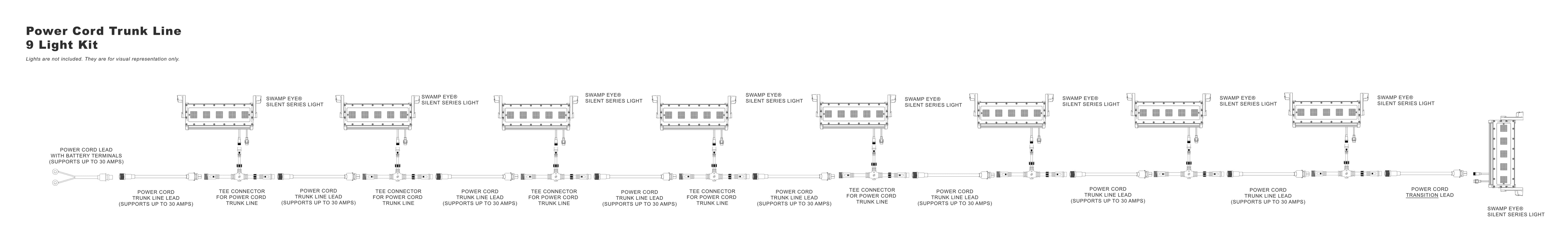

9x Light Kit - Wiring for Power Trunk Line
This kit consists of the following:
8x Tee Connector for Power Cord Trunk Line (Support Up to 30 Amps)
8x Power Cord Trunk Line Lead (Supports Up to 30 Amps)
1x Transition Lead - Trunk Line Plug to Individual Light Plug (Supports Up to 30 Amps)
1x Power Cord Lead with Trunk Line Battery Terminals (Support Up to 30 Amps)
This kit is compatible with and can support the following lights: 4x Swamp Eye® HD Bowfishing Lights (the remaining 5 lights would have to be split on 2 additional trunk lines. You are better off purchasing 2 - 4x light wiring kits and the running the last one by itself), 6x Swamp Eye® Gen 2.X Light Bars (the remaining three light bars would have to be on a separate trunk line, you are better off purchasing the 6x light wiring kit and 3x light wiring kit), or 9x Swamp Eye® Silent Series Lights.

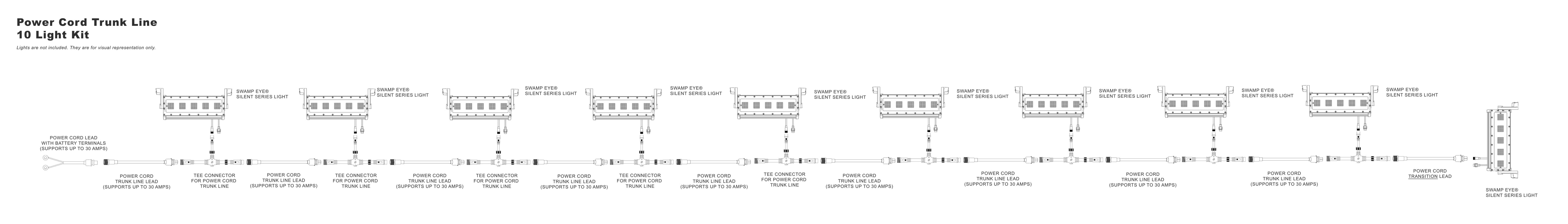

10x Light Kit - Wiring for Power Trunk Line
This kit consists of the following:
9x Tee Connector for Power Cord Trunk Line (Support Up to 30 Amps)
9x Power Cord Trunk Line Lead (Supports Up to 30 Amps)
1x Transition Lead - Trunk Line Plug to Individual Light Plug (Supports Up to 30 Amps)
1x Power Cord Lead with Trunk Line Battery Terminals (Support Up to 30 Amps)
This kit is compatible with and can support the following lights: 4x Swamp Eye® HD Bowfishing Lights (the remaining 6 lights would have to be split on 2 additional trunk lines. You are better off purchasing 2 - 4x light wiring kits and 1 - 2x light wiring kit), 6x Swamp Eye® Gen 2.X Light Bars (the remaining four light bars would have to be on a separate trunk line, you are better off purchasing the 6x light wiring kit and 4x light wiring kit), or 10x Swamp Eye® Silent Series Lights.
