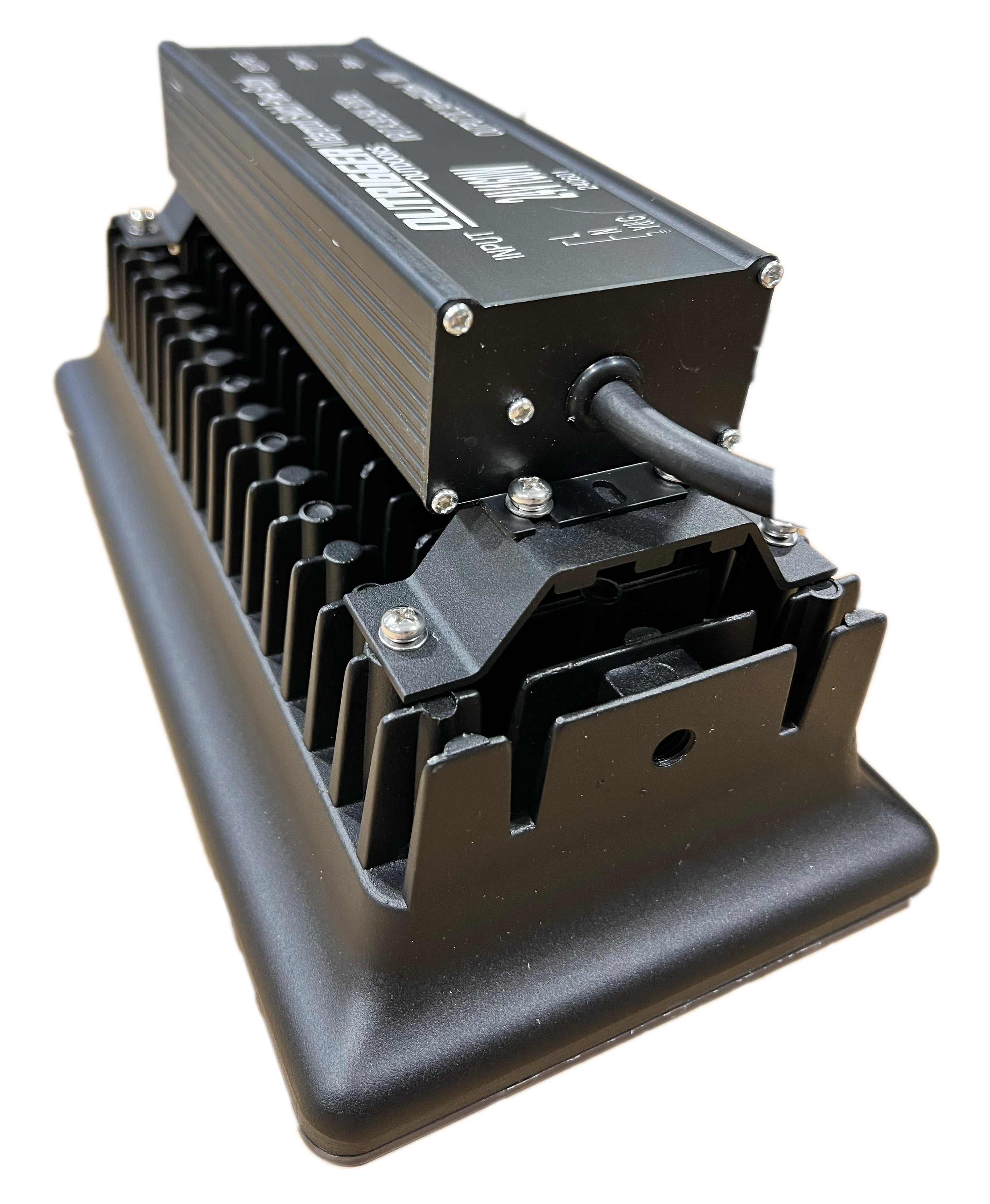

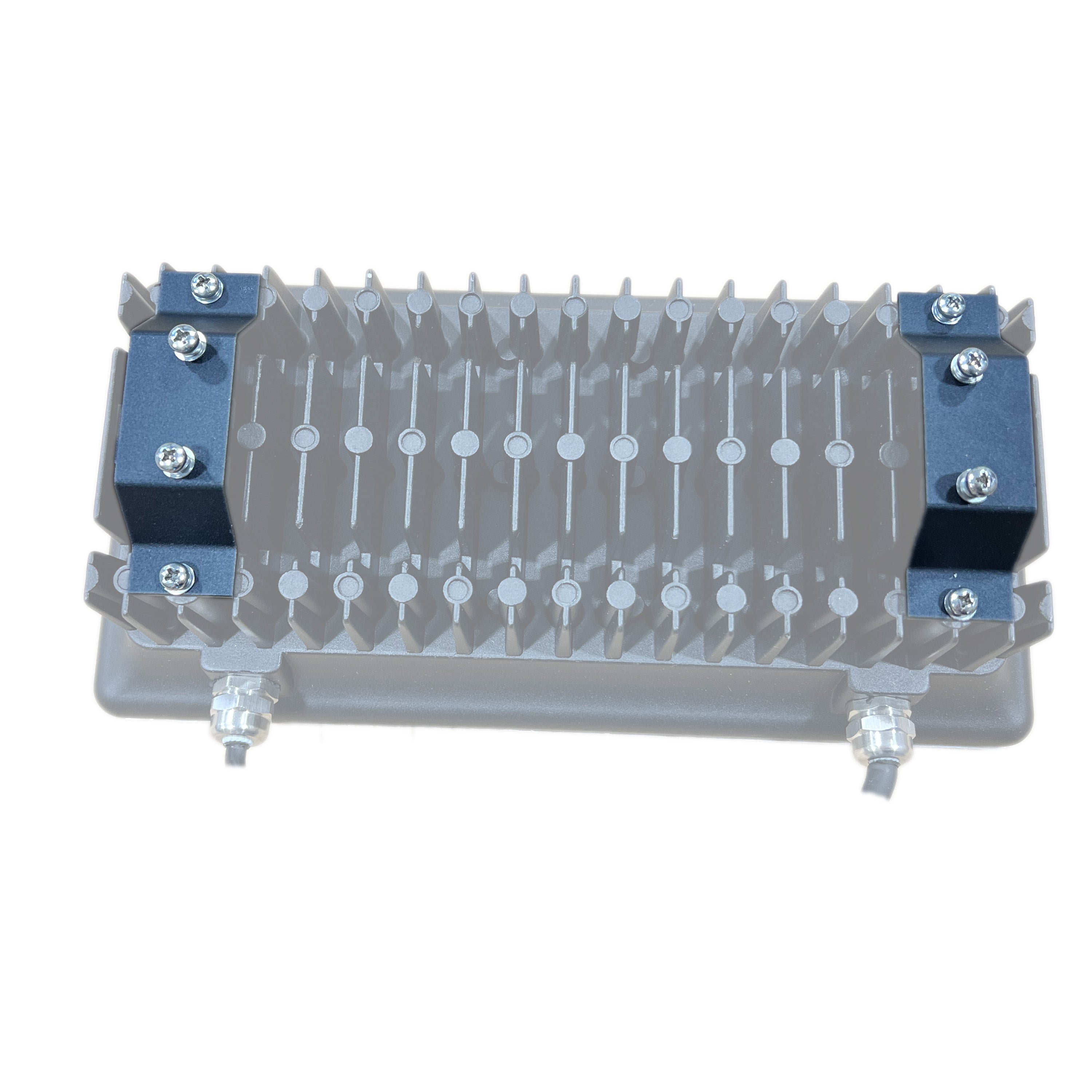

These mounting brackets are for attaching the 160W Power Supply to the back of the Swamp Eye HD. This has not been possible in the past due to overheating issues when accomplishing this task. These brackets have gone through thorough engineering to ensure the power supply does not overheat.
When these brackets are installed with a power supply attached to them, the TOTAL DEPTH OF THE LIGHT ASSEMBLY IS 5-3/8 INCHES.
Design Key Points:
- Made from a strong material that promotes heat dissipation.
- Designed to maximize airflow between the power supply (a heat generating source) and the light (also a heat generating source) to allow them to operate at lower temperatures and maximize lifespan.
- Reinforced molded design for maximum strength.
- These are ONLY compatible with Swamp Eye HDs produced in November of 2024 and later. (the back end of the HD has been reinforced and milled for threaded inserts to fit the screws. If you are not sure if your Swamp Eye HDs have this, check for threaded inserts on the back of the light).
What's included?
- 8x stainless steel screws with washers
- 2x mounting brackets
These are valid for Swamp Eye HDs produced after November of 2024. Older Swamp Eye HDs will not have reinforced threaded inserts molded into the back of the housing to support these brackets.
Why Did We Design This Bracket?
We have found that there are unique situations when people are installing lights on their boats that they do not have a place to put their power converters. In an effort to make this task easier, you are now able to utilize these mounting brackets to attach the power supply to the back of your light. In previous years this was not possible but after making design adjustments to the Swamp Eye HD itself as well as the development of these mounting brackets, we have been able to pass heat dissipation testing which allows us to put our stamp of approval on this part.
